RBSE Class10 Science Chapter 11 Electricity Solutions

In this post, you will get  Class 10 Science Chapter 11 Electricity contains solutions of all intext and end exercise questions. These solutions will help the students of class 10 to understand concepts.

RBSE Solutions for Class10 Science Chapter 11 Electricity


This post covers complete syllabus and lets you secure the best results in RBSE and other board exams





Chapter 11- Electricity


Answers of Questions on Page172



Q.1 What does an electric circuit mean?

Ans.

A continuous and closed path of an electric current is called an electric circuit.


Q.2 Define the unit of current.

Ans.

Unit of current is ‘Ampere’, which is constituted by the flow of one coulomb of charge per second. (Ampere is denoted by A).


Q.3 Calculate the number of electrons constituting one coulomb of charge.

Ans.




Answers of Questions on Page174



Q.1 Name a device that helps to maintain a potential difference across a conductor.

Ans.

A cell or battery helps to maintain a potential difference across a conductor.


Q.2 What is meant by saying that the potential difference between two points is 1 V?

Ans.

Potential difference between two points in a current carrying conductor will be 1 Volt when 1 Joule of work is done to move a charge of 1 coulomb from one point to the other.


Q.3 How much energy is given to each Coulomb of charge passing through 6 V battery?

Ans.


Answers of Questions on Page181



Q.1 On what factors do the resistance of a conductor depends?

Ans.

The resistance of a conductor depends on

 (i) Lengths

(ii) area of cross-section and

(iii) Nature of the material of the conductor.



Q.2 Will current flow more easily through a thick wire or a thin wire of the same material, when connected to the same source? Why?

Ans.

Current will flow more easily through a thick wire of the same material when connected to the same source, because resistance is the obstruction offered by conductor and it is inversely, proportional to area of cross-section of the conductor. So a thick conductor offers lesser resistance than a thin wire.


Q.3 Let the resistance of an electrical component remains constant while the potential difference across the two ends of the component decreases to half of its former value. What change will occur in the current through it?

Ans.

When the potential difference across the two ends of the component decreases to half of its former value, the value of current flowing through it will also change to half of former value because (according to Ohm’s law) V I.


Q.4 Why are coils of electric toasters and electric iron made of an alloy rather than a pure metal?

Ans.

The coils of electric toasters and electric iron made of nichrome.  Nichrome is an alloy of nickel (60%), chromium (12%), manganese (2%) and iron (26%). The alloy is used because of –

  Ø Resistivity of an alloy is higher than that of pure metal.

  Ø They  have high melting point.

  Ø On heating they does not oxidise easily.


Q.5 Use the data in table 12.2 to answer the following:

(a)  Which among iron and mercury is a better conductor?

(b)  Which material is the best conductor?

Ans.

According to table 12.2

(a)       Among iron and mercury, iron in a better conductor.

(b)      Silver is the best conductor.



Answers of Questions on Page185



Q.1 Draw a schematic diagram of a circuit consisting of a battery of three cells of 2 V each, a 5 Ωresistor, an 8 Ω resistor and 12Ω resistor and a plug key, all connected is series.

Ans.









Q.2 Redraw the circuit question 1 putting in an ammeter to measure the current through the resistors and a voltmeter to measure the voltage across the 12 Ω resistor. Note down the readings in the ammeter and the voltmeter.

Ans.






Answers of Questions on Page188



Q.1 Judge the equivalent resistance when the following are connected in parallel:

  (a)  1Ω   and 106.Ω

  (b)  1 Ω and 103 Ω and 106Ω




Q.2 An electric lamp of 100Ω, a toaster of resistance 50Ω, and a water filter of resistance 500 Ω are connected in parallel to a 220 V source. What is the resistance of an electric iron connected to the same source that takes as much current as all three appliances, and what is the current through it?

Ans.


Q.3 What are the advantages of connecting electrical devices in parallel with the battery instead of connecting them in series?

Ans.

Electrical devices are connected in parallel with the battery instead of in series. It is advantageous to provide same voltage across each appliance and any appliance may be switched on or off without interference of the other.

Q.4 How can three resistors of resistances 2Ω, 3Ω  and 6Ω  be connected to give a total resistance of (a) 4Ω (b)1Ω.

Ans.

Q.5  What is (a) the highest, (b) the lowest total resistance that can be secured by combination of four coils of resistance 4Ω, 8Ω, 12 Ω and 24Ω.

Ans.



Answers of Questions on Page190



Q.1 Why does the cord of an electric heater not glow while the heating element does?

Ans.

We know that H = I2Rt, so heat produced when current passes, through a resistor is directly proportional to its resistance. The resistance of electric heater is much higher than that of coil and it becomes hot and glows.


Q.2 Compute the heat generated while transferring 96000 Coulomb of charge in one hour through a potential difference of 50 V.

Ans.




Q.3 An electric iron of resistance 20 Ω takes a current of 5A. Calculate the heat developed in 30 s.

Ans.



Answers of Questions on Page192



Q.1 What determines the rate at which energy is delivered by a current?

Ans.

Electric power determines the rate at which energy is delivered by a current.


Q.2 An electric motor takes 5 A from a 220 V line. Determine the power of the motor and the energy command in

2h.

Answer






Answers of End Exercise Questions


Q.1 A piece of wire of resistance R is cut into five equal parts. These parts are then connected in parallel. If the equivalent resistance of this combination is R’ then the ratio  is

(a)   `\frac{1}{5}`



(b)  `\frac{1}{25}`


(c)  5

(d)  25

Answer     (d)


Q.2 Which of the following terms does not represent electrical power in a circuit?

(a)  I2R

(b)  IR2

(c)  VI

 (d)    `\frac{V^2}{R}`

Answer    (d)  IR2



Q.3 An electric bulb is rated 220  V and 100 W. When it is operated on 110 V, the power consumed will be:

 (a)  100 W

 (b)  75 W

 (c)  50 W

 (d)  25 W

Answer     (d)  25 W


Q.4 Two conducting wires of the same material and of equal lengths and equal diameters are first connected in series and then parallel in an electric circuit. The ratio of heat produced in series and parallel combinations would be

 (a)  1 : 2

 (b)  2 : 1

 (c)  1 : 4

 (d)  4 : 1

Answer       (d)  4 : 1


Q5  How is a voltmeter connected in the circuit to measure the potential difference between two points?

Answer

A voltmeter is connected in parallel to the conductor to find the potential difference between two points.


Q.6 A copper wire has diameter has 0.5 mm and resistivity of 1.6 × 10-8  m. What will be the length of this wire to make its resistance 10 ? How much does the resistance change if the diameter is doubled?

Answer



Q.7 The values of current I-flowing in a given resistor for the corresponding values of potential difference V-across the resistor are given below:




Plot a graph between V and I and calculate the resistance of that resistor.

Answer





Q.8 When a 12 V battery is connected across an unknown resistor, there is a current of 2.5 mA in the circuit. Find the value of the resistance of the resistor.

Answer



Q.9 A battery of 9 V is connected in series with resistors of 0.2Ω, 0.3Ω, 0.4Ω, 0.5Ω, and 12Ω respectively. How much current would flow through the 12Ω resistor?

Answer




Q.10How many 176 Ω resistors (in parallel) are required to carry 5 A on a 220 V line?

Answer



Q.11 Show how you would connect three resistors, each of resistance 6Ω, so that the combination has a resistance of (i) 9Ω, (ii) 4Ω.

Answer

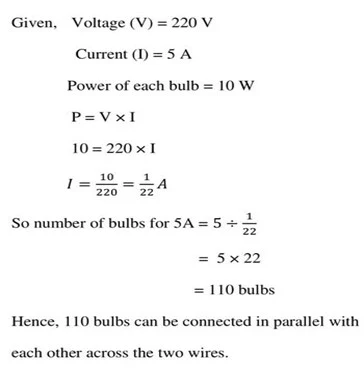

Q.12 Several electric bulbs designed to be used on a 220 V electric supply line, are rated 10 W. How many lamps can be connected in parallel with each other across the two wires of 220 V line if the maximum allowable current is 5 A?

Answer

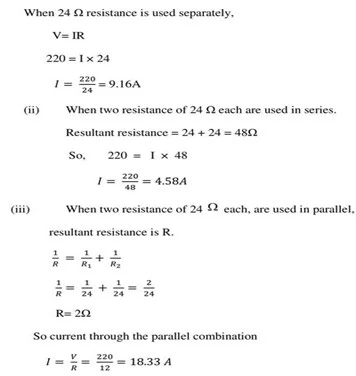

Q.13 A hot plate of an electric oven connected to a 220 V line has two resistance coils A and B, each of 24 Ω resistance, which may be used separately, in series, or in parallel. What are the currents in the three cases?

Answer





Q.14 Compare the power used in the 2Ω  resistor in each of the following circuits : (i) 6 V battery in series with 1Ω  and 2Ω  resistors, and (ii) a 4 V battery in parallel with 12 Ω and 2Ω  resistors.

Answer





Q.15Two lamps, one rated 100 W at 220 V and the other 60 W at 220 V are connected in parallel to a 220 V supply. What current is drawn from the supply line?

Answer






Q.16Which uses more energy a 250 W TV set in 1 hour or a 1200 W toaster in 10 minutes?

Answer



Q.17 An electric heater of resistance 8 Ω draws 15 A from the service mains 2 hours. Calculate the rate  at which heat is developed in the heater.

Answer




Q.18 Explain the following:

(a)  Why is the tungsten used almost exclusively for filament of electric lamps?

(b)  Why are the conductors of electric heating devices, such as bread-toasters and electric irons, made of an alloy rather than a pure metal?

(c)  Why is the series arrangement not used for domestic circuits?

(d)  How does the resistance of a wire vary with its area of cross-section?

(e)  Why are copper and aluminum wires usually employed for electricity transmission?

Answer

(a)  Tungsten is used almost exclusively for filament of electric lamps, because it is not oxidized at high temperature. It has melting point 3380 .

(b)  The conductor of electric heating devices as toasters and electric irons are made of an alloy rather than a pure metal because resistivity of an alloy is generally higher than that of pure metals.

(c)  In series arrangement the resistance of the combination of resistors (of used devices) is the sum of the individual resistors. So series arrangement is not used in domestic circuits.

(d)  Resistance of a given wire is the obstruction offered by conductor. When a battery is connected to the two ends of a conductor, a potential difference is set up and electrons are accelerated and move. In their motion they collide with atoms of the conductor. So if area to pass the electrons is less, obstruction is more and if area is more the obstruction is less and resistance is less.

(e)  Copper and aluminium wire are usually employed for the transmission of electricity, because their resistivity is very low and they are good conductor of electricity.
